Description of transformer coil winding machine GDY-1T

Semi automatic transformer coil winding machine GDY-1T is professional winder for winding different sizes of copper or aluminum wire coils. These coils can be used in transformers and other similar products. The transformer coil winding machine is semi automatic and is provided with an digital counter for counting the number of turns and the total number of turns can be preset, which means the winding machine will stop after winding the number of turns preset. Moreover, even though there is a sudden power failure, the counting record and the parameters input can be saved. The winding speed of the transformer coil winding machine can be adjusted stepless through a potentiometer on the board. The rotating direction (forward/reverse) of the transformer coil winding machine can be switched through the foot pedal.

Quick details of transformer coil winding machine GDY-1T

• Winding copper or aluminium wire
• Winding width 1000mm
• Maximum capacity 1000kg
• Winding power 3kw
• Winding shaft size 40x40x1200mm
• Two speed gear

Specifications of transformer coil winding machine GDY-1T

Typical standard specifications of coil winding machine GDY-1T are shown below, however, the coil winding machine can also be manufactured as requested.

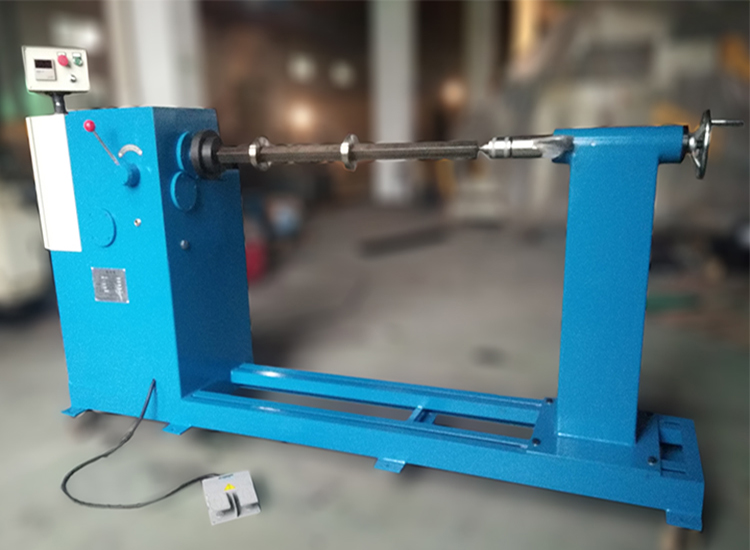

Fig 1: Transformer coil winding machine GDY-1T's full view

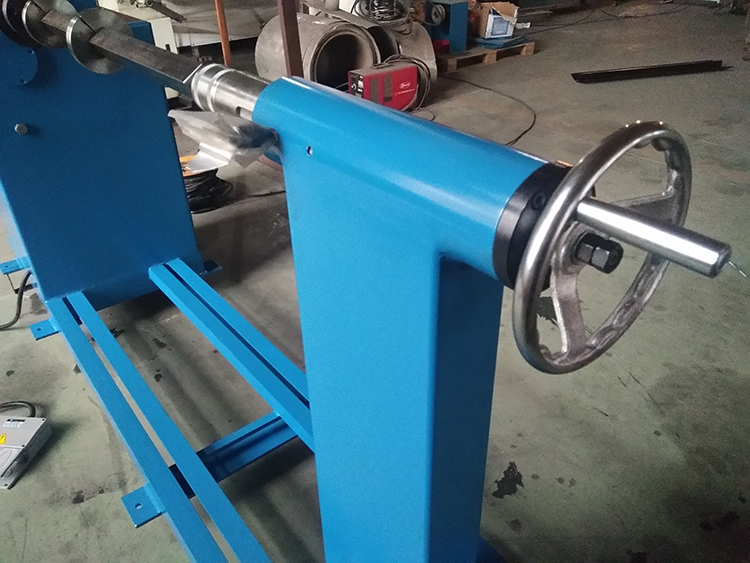

Fig 2: Transformer coil winding machine GDY-1T's tailstock
