Automatic Reactor Foil Strip Winder Electrical TIG Copper Foil Winding Machine
Description of copper foil winding machine BRJ600-2-2
Copper foil winding machine BRJ600-2-2 is a specail foil winder for winding reactor foil coil and other similar products. The copper foil winding machine is provided with two chucks for clamping iron core and the foil can be wound on the core directly. With two servo motors driving, the two chucks has the same torque, which guarantees the good shape of the wound coil. This kind of copper foil winding machine can wind one or two layers of copper foil with thickness 0.2mm ~ 2mm and aluminium foil with thickness 0.3mm ~ 3mm. Two photoelectric sensors are adopted to correct the position of the foil when winding. With the control system based on PLC, the copper foil winding machine can be operated easily. All parameters of the copper foil winding machine can be input through a touch screen. The copper foil winding machine features slow starting, big torque, high automation and so on.
Quick details of copper foil winding machine BRJ600-2-2
- Two servo motors driving
- Two chucks clamping iron core
- Foil material ID 500mm
- Maximum foil material OD 1000mm
- Maximum winding speed 26rpm
- Winding power 11kw
- TIG welding
- Customized color
Technical parameters of copper foil winding machine BRJ600-2-2
Typical standard specifications of BRJ600-2-2 are shown below, however, the foil winding machine can also be manufactured as requested.
| Foil width: | 250 ~ 600mm |
| Max. Finished Coil OD.: | 800mm |
| Conductor Strip Material: | Copper or Aluminum |
| Al Strip Thickness: | 0.3 ~ 3.0 mm |
| Cu Strip Thickness: | 0.2 ~ 2.0 mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 650mm |
| Foil Decoiler Expanding Range: | Ø420 ~ 520mm |
| Max. Coil Weight: | 1,000KG |
| Motor Power: | 11kw |
| Max. Winding Speed: | 26 rpm |
| Welding System: | TIG |
| Insulation Decoiler Number: | 2 pcs |
| Insulation Decoiler Width: | 650mm |
| Insulation Decoiler Shaft: | pneumatic open/close action |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User interface: | 10 inches (254mm) touch screen |
| Counting Range: | 0 ~ 9999.9 |

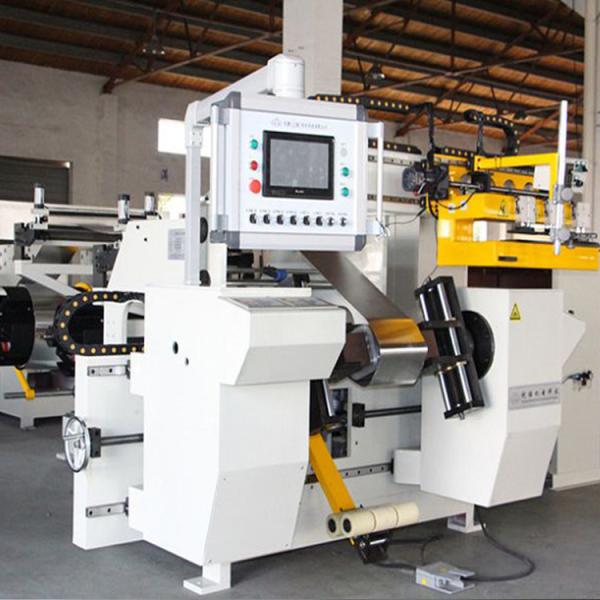

Fig 1: Copper foil winding machine BRJ600-2-2's front view
Fig 2: Copper foil winding machine BRJ600-2-2's foil decoiler
